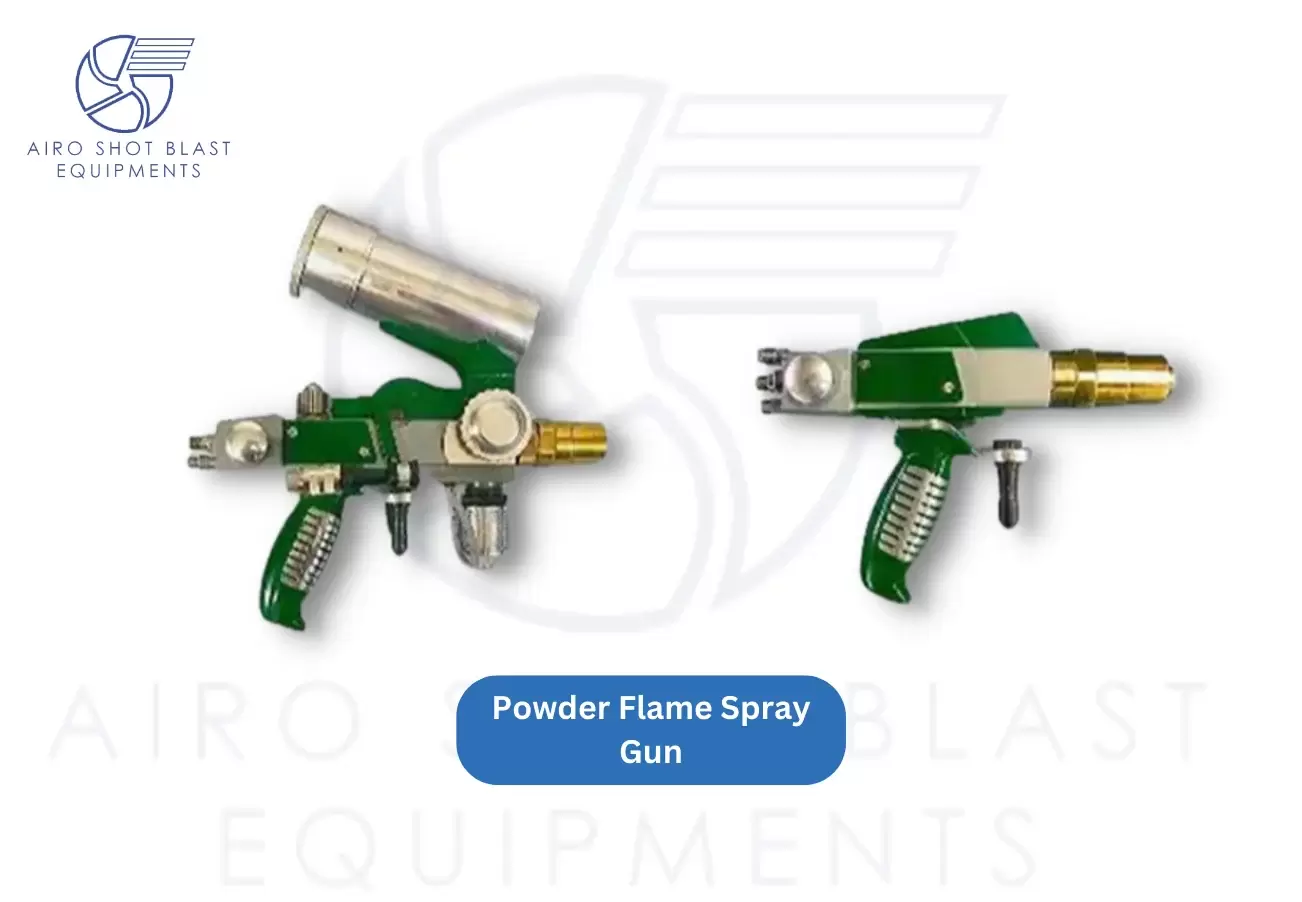

Powder Flame Spray Gun

Price : ₹ 45K - 6Lakh
We're here for you
Payment Terms:
About Powder Flame Spray Gun
Brand Name
Airo Shot Blast Equipments
Product
Powder Flame Spray Gun
HOSE KIT
Twin hose for Oxley-Fuel & Air Hose 7 Mtr. Long
ACCESSORIES
Air Control Unit, Gas Flowmeter 2GF, Gun Mounting Stand, Regulator Oxygen & L.P.G., Safety Wears
Nozzle Size (mm)
0.3 mm
Packaging Type
Bubble Wrapping & Box
Transport Type
Land / Sea / Air Transport

A powder flame spray gun is used for the coating process over the surface and this coating material is in its powder form making the procedure simplest.

This process involves feeding of précised amount of powder via the center bore of the Sand Blasting nozzle. The powder melts here and is further carried by oxy-fuel gases to the workpiece.

The powder flame spray gun process works a comparable technique as the Flame Spray Gun, but that the wire feedstock is replaced by a powder. The main benefit of this method is that a much more extensive variety of materials (such as nickel or cobalt-based self Fuxing composites or ceramic substances) can be easily treated into powder for providing a greater choice of coatings. Many compounds are difficult that it cannot be presented in a wire form and for this purpose, it was produced.

The method relies on the chemical reaction between oxygen and combustible combustion to produce a flame source. This flame source produces a gas stream by temperature in the overflow of 3,000°C with correctly balanced conditions between oxygen and acetylene. The feedstock material to be sprayed is fed into the flame in the form of a powder to melt and the thermal expansion of the flaming is then used to atomize and stimulate the particles onto the component.

Used for budgetary applications where deposit’s quality does not affect the performance of component and coating of the surface.

Specifications of Powder Flame Spray Gun

Body Material Stainless Steel & Iron
Air Pressure 30-50 psi
Cup Capacity 550 ml
Nozzle Size 0.3 mm
Air Inlet 1/4"
Packaging Type Box

Benefits of Powder Flame Spray Gun

  • Simplest process
  • Improved quality
  • Easy to carry out
  • Requires basic training for employees
  • A wide range of products can be easily processed into their powder form
  • Multiple options for coating

Powder Flame Spray Gun in India

Grit Blaster is the Manufacturer, Supplier & Exporter of the Powder Flame Spray Gun, metalizing gun, thermal Spray gun, zinc spray gun, arc spray gun, portable Sand Blasting Machine, shot blasting machine, grit blasting machine, Sand Blasting Cabinet, Sand Blasting Nozzles, Shot blasting room, & abrasive media, etc in Jodhpur, Rajasthan, India for sale. we provide all types of Sand Blasting Machine, Shot Blasting Machine, Grit Blasting machine all over the world with the best quality.

 August 17, 2023
This post contains a detailed instruction for cutting-edge HVOF thermal spray coating equipment. Here get the product's features, applications, price, manufacturer details, usage guidelines, and more.
Thermal Spray Gun
Thermal Spray Gun is a means of supplying metallic, ceramic, cermet, and any polymeric compounds in the form of particles, wire, or rod to a flashlight or gun.

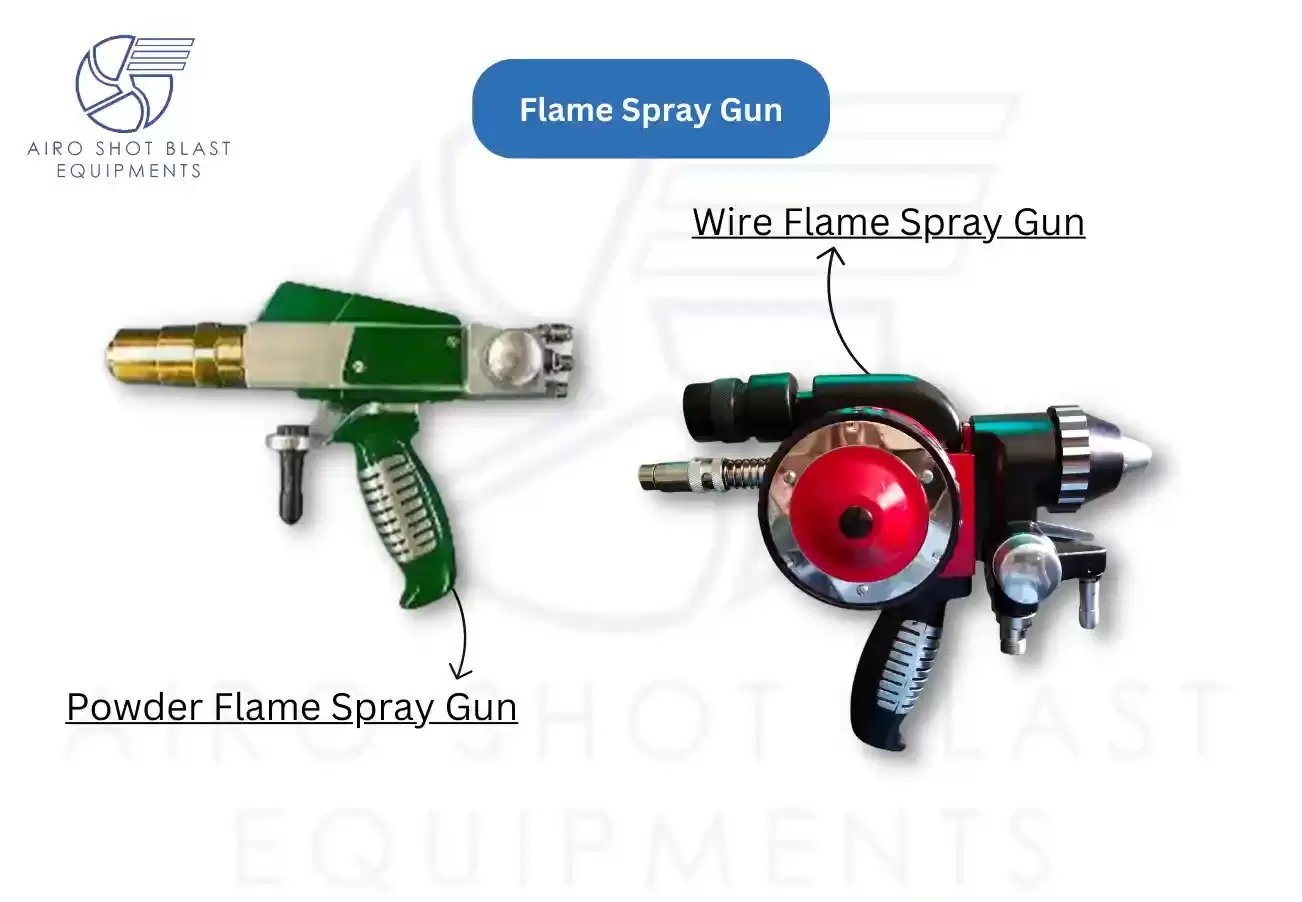

Flame Spray Gun
The natural substance in the form of a single wire, cable, or powder is used in the Flame spray gun technique.
Arc Spray Gun
Arc Spray gun, also known as TSZ, TWAS, TSA, and metalizing, is the most cost-effective and productive thermal spray gun.

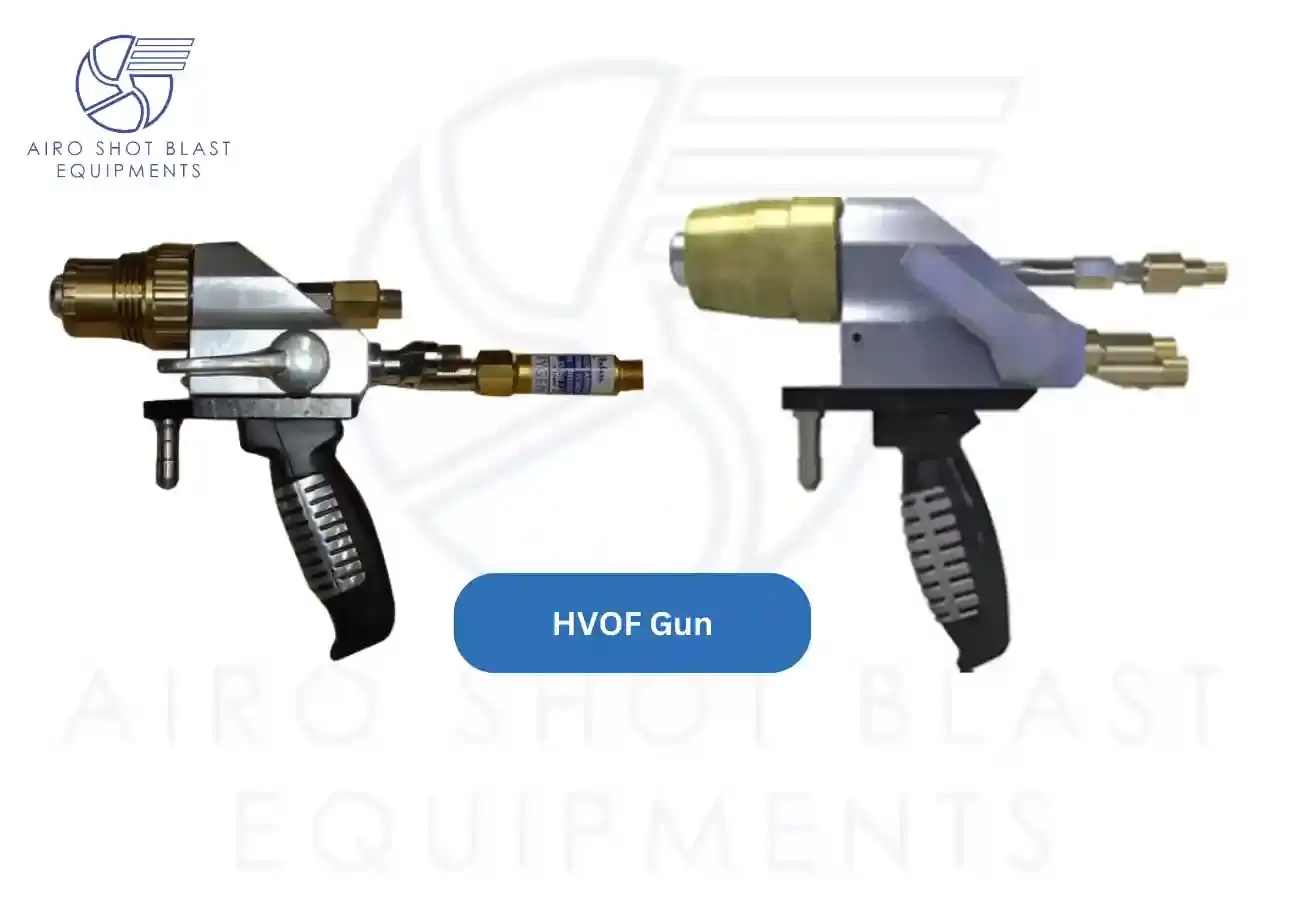

Hvof Gun
Hvof Gun, also known as High Velocity Oxygen Fuel Spraying, is a high-velocity flame spray gun method.

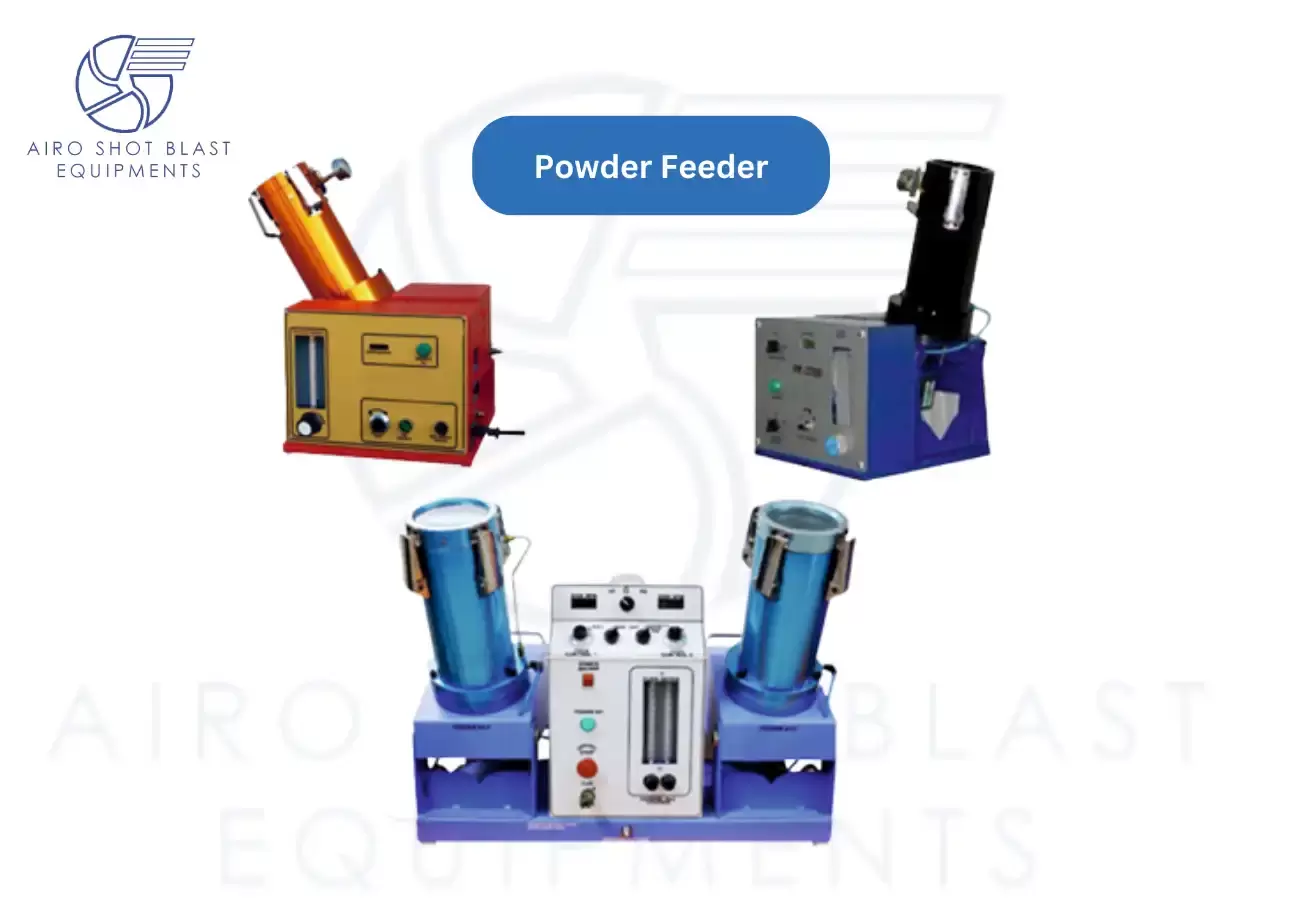

Powder Feeder
The powder feeder use rotating disc technology to maintain a consistent flow of powder carried by a carrier gas (Ar, N2), whereas the closed-loop powder feeder weights powder using load cells.

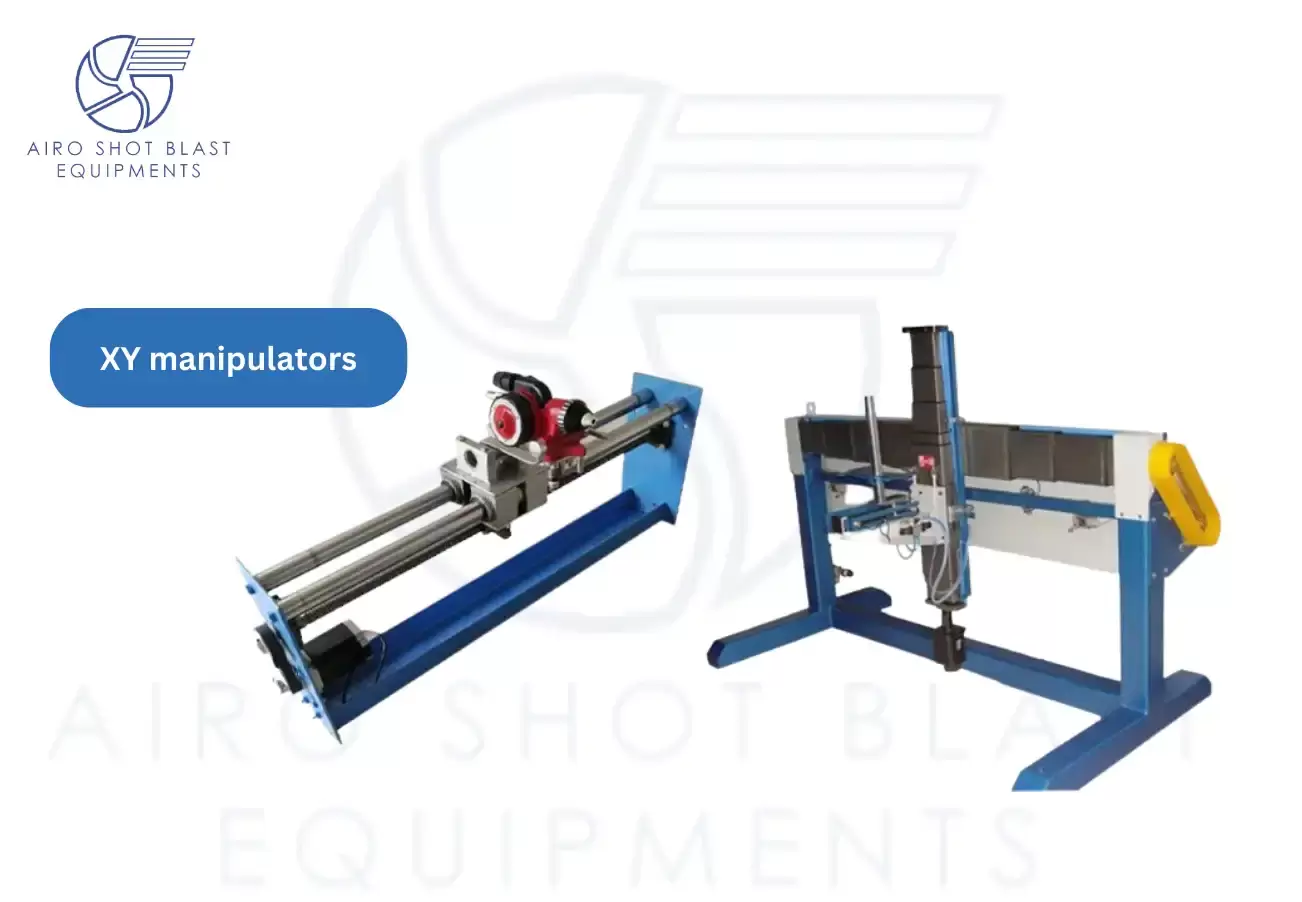

XY Manipulator
The XY manipulator is used to create movement in vacuum with varying degrees of precision.

Grit Blasting Machine, portable abrasive blasting machine manufacturers, suppliers & exporters in India.” Grit Blasting Machine” has specialized in the manufacture of field-proven equipment for the Surface Finishing Industry for the past 7 years.
