Online Zinc Spray Coating System For Tube Mill

• Outdoor and handmade furniture
• car seat outlines
• the green passage kind of nurseries
• Garages
• removing barriers
• Conductors for balustrades, aluminum-framed car exhaust systems, etc.

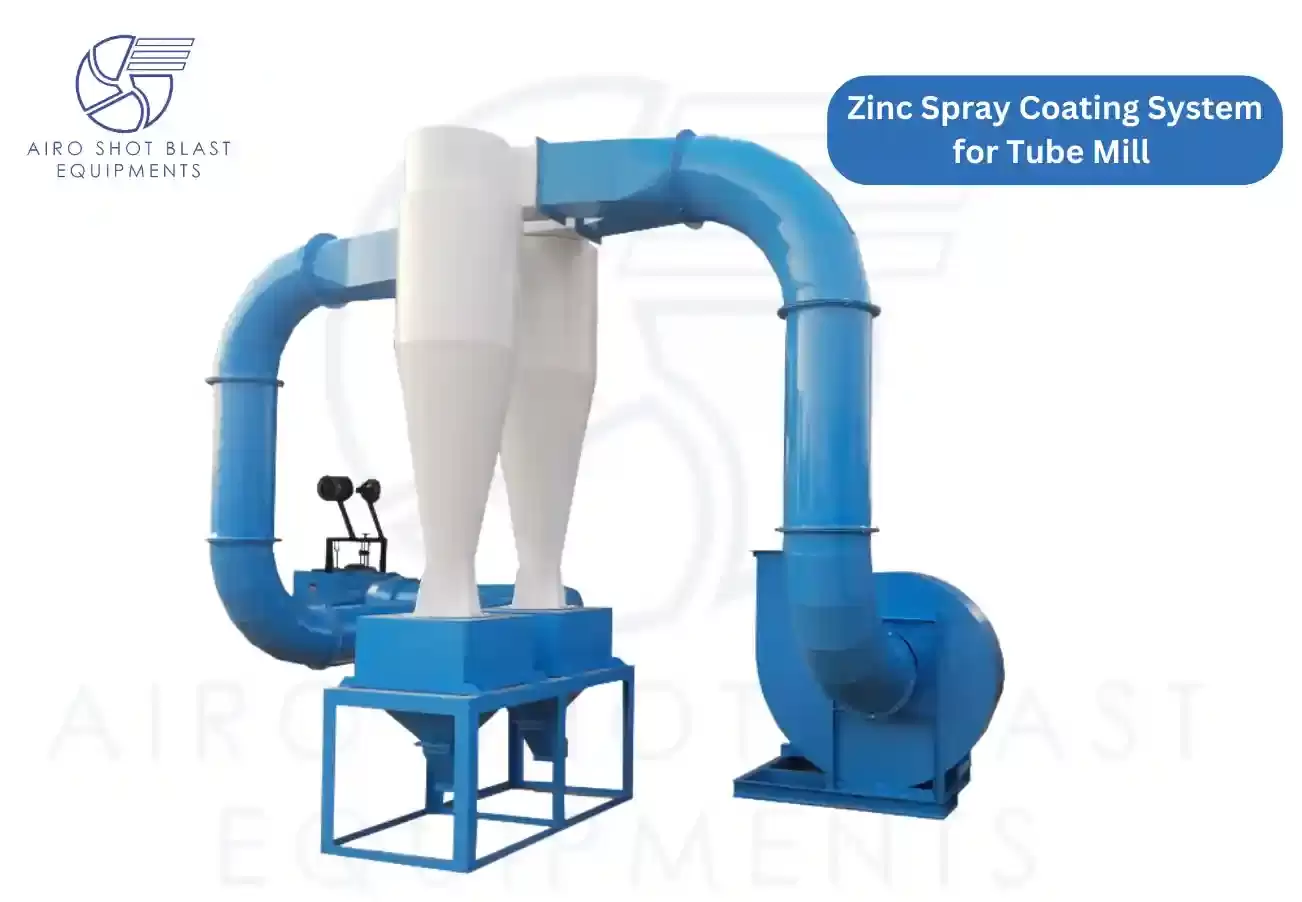

G. I. Tubes and pipes delivered from Online Zinc Spray Coating System For Tube Mill generally need corrosion resistance property at weld portion, throughout the entire crease length (because of removal of the galvanized layer while welding the crease) resulting in helpless corrosion resistance and ensuing rusting. Grit Blaster has analyzed the issue and grown chemically non-risky thermal spray systems for continuous on line zinc spray coating on G. I. Tubes and Pipes on the crease. Such systems have been shown and supplied to various leading tube mills where these systems have been performing satisfactorily. The Zinc spray is 20 to 30 Microns. Nonetheless, 10 to 100 microns can be deposited (depending upon tube/pipe cross speed) on Tubes and Pipes ranging from 15mm N.B. to 125mm N.B. Size without interrupting Tube Mill speed. The average yield can be 10 pipes each minute with an approximate 25 microns coating thickness. The System package consists of a dry spray booth (Spray Chamber), Twin Cyclone, Exhaust Fan with engine along ducting.

The Spray Booth is installed soon after welding Work Station. The arc spray gun is positioned inside the Spray Booth. The distance of the spray gun from the tube/pipe is changed depending upon the size of the tube/pipe and the spray design required to minimize spray wire misfortunes. The Hot Weld crease is sprayed with zinc wire resulting in a thick coating with a strong metallurgical bond over the weld crease. The vapor and fine Zinc dust generated in the spray booth are sucked into the cyclone dust collector because of suction made by the exhaust fan. Because of cyclonic action, the zinc particles are caught at the lower part of the cyclone dust authority, and clean air is discharged from the power source of the blower into the climate keeping The Arc Spray Gun System consists and of Arc Spray Gun with a two-wire feeding arrangement DC/AC Power source built-in with control console with wire spool stand having spool capacity 15Kgs each. The Wire feeding mechanism is by pull measure controlled by an electric engine. The wire feeding speed is customizable through the engine. The zinc spraying is a cool cycle producing fine and thick quality coating having high bonding strength and minimum porosity.

Purpose of Online Zinc Spray Coating System For Tube Mill

For Zinc Metallizing of the external surface of LPG Cylinders Minimum diameter 305mm x 620mm length & maximum diameter 350mm x 730mm length Production Output:
700 to 800 nos. per shift cylinder diameter 305mm x 620mm length with Arc Spray Gun.

Trade Information

• Payment Terms-Letter of Credit at Sight (Sight L/C), Letter of Credit (L/C), Cheque
• Supply Ability-1 Piece Per Month
• Main Export Market(s)- Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia

Online Zinc Spray Coating System For Tube Mill Manufacturer in India

Grit Blaster offers a complete zinc spray coating plant for tube mill application. We are also the supplier and exporter of Sand blasting machine, shot blasting machine, and Grit Blasting machine at a low price for sale in Rajasthan, India.
