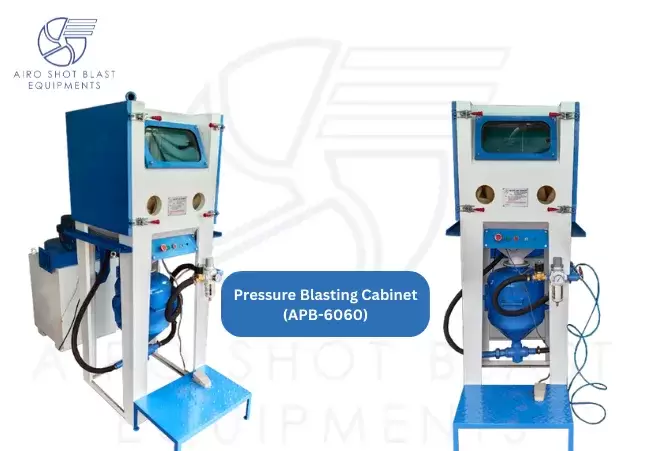

Pressure Blasting Cabinet, where the abrasive is placed in the pressure vessel and is sealed then. The vessel is pressurized with the same pressure as the blast hose is, which is attached at the bottom of the pressure vessel. The abrasive mix is put into the blast hose and compressed gases carry it through the blast nozzle towards the surface. It is also a dry process.
Pressure Blast Cabinet operates on the Direct Pressure principle of blasting. It uses a pressurized vessel or “blast pot” that operates the abrasive media. In a pressure blast cabinet, the air force in the vessel and in the “pusher” line is prepared to be the same. This means that there is no pressure difference between the excitement pot and the blast line this allows the abrasive media to meter into the airstream at the blast pot and then run the time of the blast hose or pipe out to the blasting nozzle. Pressure abrasive blasting cabinet equipment has a separate hose moving to the blast nozzle.
Working of Pressure Blasting Cabinet
In the Pressure Blasting Cabinet, the Solenoid valve is used for controlling the Pressure blasting. The solenoid valve is controlled electrically by means of push-button. There are two options for controlling the blasting process by Ball valve (Manually) & Solenoid Valve (Automatically). Compressed air is passed through the Moisturizer Separator that Separates Moisture from the air. So to avoid moisture from clotting inside the nozzle. Non- retrieval Valve is used to avoid the back-flow of the mixed abrasives. Then it is passed through an air Regulator that regulates air inside the mixing tube. Then mixed abrasive is pressurized with compressed air. In a Pressure pot, compressed air is used to create pressure on the abrasive. Then abrasive is mixed with compressed air coming from the Non-retrieval valve. The perforated sheet is used & wire mesh is used to provide vibration for the filtration of abrasives with the help of compressed air & abrasive particles collected in the hopper. When blasting is started abrasive particles strikes on the surface & get deflected toward the walls of cabinets. Inside walls of the cabinet are pasted with Rubber sheets for protection of cabinets walls from abrasive blasting. Pressure blasting is having a high velocity due to which is effective for blasting done in less time compared to other ones. We have a Dust collector at the backside of the cabinets to collect dust particles in the form of dust & microparticles get to settle down use as recycle abrasives. There are two ways of blasting the workpiece by moving the workpiece or by moving an abrasive blasting gun. As suitable for a workpiece for abrasive blasting.
If a workpiece is heavy then the abrasive blasting gun is driven by the operator. If an abrasive blasting gun is fixed then the operator moves the workpiece according to the blasting surface. In the cabinet, there are both types of arrangements provided by "Company Name".
Types of Pressure Blast Cabinet
Pressure Blast Cabinet Available in 3 models:
- APB-9182
- APB-12090
- APB-150120
Pressure Blast Cabinet for sale
Grit blaster is the best leading Manufacturer, Supplier & Exporter of Pressure Blast Cabinet for sale. We are also a Manufacturer & Supplier of all type of Sand Blasting Machine, Shot Blasting Machine, grit blasting machine, Sand Blasting Cabinet, suction blasting cabinet, Sand Blasting Room, Sand Blasting Nozzles, thermal Spray gun, Metalizing gun, zinc spray gun, flame Spray gun, arc spray gun & abrasive media in Jodhpur, Rajasthan, India at a low price with the best quality for sale.
